Insert injection molding is a smart way to make strong plastic parts. It mixes plastic with other solid materials like metal. This method is used in many industries, such as cars, electronics, and even medical tools. If you sell or use molded products, understanding metal inserts in injection molding can help you make better choices.
We’ll talk about what insert injection molding is, how it works, and where it’s used. We will also explore the process, important things to consider, its benefits, and how it compares to overmolding. This guide is simple, friendly, and easy to understand. Let’s get start!
What is Insert Injection Molding and How Does It Work?
Plastic insert molding process where plastic is molded around a solid part, often made of metal. The metal component is called an “insert.” During the process, the insert is properly positioned into a mold, and then hot plastic is injected around it. Once the plastic cools down, it hardens, maintaining the insert tightly in place. This creates a solid fabrication from each plastic and the insert.
This technique enables the store to keep time and makes the component more potent. You don’t want to sign up for the two accessories later. Everything is executed in a single step within the mould. Common inserts embody nuts, screws, pins, or wires. When the plastic wraps around the insert, it locks it in, developing a smooth, completed product.
What is the Process of injection Molding?
The insert injection molding process has several simple steps. Each step is essential to ensure the final part is strong and looks good.
First, the insert is carefully positioned into the mould. This step may be achieved via hand or the usage of a system. The insert need to be located inside the proper spot. If it moves, the component may not pop out right.
Next, the mould closes. Hot melted plastic is injected into the mold. The plastic flows across the insert and fills up the mould’s form. The plastic is typically heated to a high temperature so it remains soft and flows without difficulty.
After that, the plastic cools down inside the mold. As it cools, it turns into difficult and holds the insert tightly in area. This cooling step is important. If the plastic isn’t always cooled sufficient, it may warp or bend.
Finally, the mould opens, and the finished element is taken out. This part now has a plastic frame with the insert locked inner it. It is strong and equipped to be used. Sometimes, small trimming is finished to remove greater plastic, high, typically, the element comes out smooth.
Considerations Before Insert Molding
Before using insert injection molding, there are a few important matters to reflect onconsideration on. These will help make certain the final components are high quality.
Reflect on the sort of insert you may use. It must be strong and able to deal with warmness and pressure. Metal is a common preference because it’s far sturdier and holds up well. The shape of the insert ought to permit the plastic to go with flow around it without difficulty.
The mold design should be just proper. The insert ought to match perfectly within the mould. If the mold isn’t designed well, the insert may circulate or now not be protected properly. This can cause bad components or waste.
Another key factor is the bonding between the insert and the plastic. The plastic ought to stick well to the insert. Some inserts can also need special coatings or difficult surfaces to help the plastic grip better. If the plastic doesn’t keep the insert tightly, the part may break later.
Keep in mind the type of plastic you pick out. Some plastics work higher with positive inserts. Make positive the plastic melts and flows effortlessly around the insert. It must also settle down rapid and live robust.
Reflect on the quantity of components you want. Insert molding works quality for medium to high quantity production. It saves time and value, whilst many injection molding with metal parts are made immediately.
What Are the Advantages of Insert Molding
Insert injection molding has many fantastic benefits that make it a top desire in lots of industries. One of the biggest benefits is energy. When the plastic is molded across the insert, the very last element will become very robust. This allows reduce element failure and increases the lifestyles of the product.
Another gain is value savings. Since the insert and plastic come together in one step, there’s no want for additonal meeting. This cuts down labor time and gear. It reduces the risk of mistakes at some stage in a meeting.
Insert molding also helps make components lighter. Instead of using all metal, businesses can use metal handiest in when needed and use plastic for the rest. This lowers the load whilst preserving the part’s sturdy. Lighter components are super for motors, planes, and electronics.
This method also gives better appears. The plastic covers the insert smoothly, giving the element a smooth end. There are not any seen screws or joins, which looks extra professional.
Insert molding applications
Insert injection molding is used in many different regions. One common use is in electronics. Many electric elements need wires or metal pins internal plastic. Insert molding locks these elements in area, in order that they stay safe and work properly.
In the auto industry, insert molding is used for making knobs, handles, and clips. These components frequently have a steel inner for power and a plastic outside for insulation or seams. This process helps make the automobile components lighter and robust.
Medical equipment also uses insert molding. Items like plastic covers with steel blades or pins may be made competently and fast. Insert molding makes certain the components are clean and strong, which may be very critical in fitness care.
Insert molding is likewise used in making domestic appliances. For example, plastic handles with metallic screws inside are common in kitchen gear. It’s also used in toys and sports activities gear to add electricity where needed without making the product heavy.
Comparison Between Insert Molding vs Overmolding
Insert molding vs overmolding are each processes to incorporating substances. But they’re now longer equal. Understanding their variations can help you choose the right one for your job.
Insert molding adds plastic round a separate part, commonly metal. The insert is located in the mold before the plastic is brought. The result is one strong component that mixes each substances.
Overmolding is a chunk exclusive. It adds a layer of smooth plastic over a hard plastic base. The first plastic component is made and cooled. Then, it is placed in every other mould, and a second plastic is molded on top. Overmolding is right for including smooth grips or colourful designs.
Insert molding is fantastic for making custom insert molded components with a metal inner. Overmolding is better for consistency and looks, like rubber handles or tender-contact buttons.
Insert molding is frequently used in components that need strength or electric connections. Overmolding is used in components that people touch or hold. Both have their jobs, and both are useful in making better merchandise.

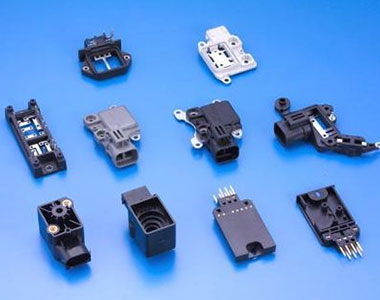

Insert Molds, Insert Molded Plastic Parts and Products manufacturer
Insert molding (RV molding insert, film insert molding, insert trim molding and so on) is simply one of many professional plastic injection molding offerings offered using EX MOULD CO., LIMITED. Using fairly advanced vertical forming machines, our thermoplastic insert injection molding system achieves tight tolerances to ensure proper molding of plastic elements. No matter what kind of injection molding product you want, our top service may be tailored to meet your needs in every possible way. We have the expertise and know-how in insert molding technologies and design to deliver the annoying plastic insert molding answers for complex parts required for tasks in every industry.
